Potential energy stored in a spring

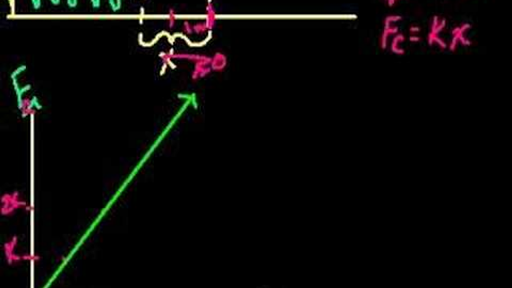

Learn about the force required to compress a spring, and the work done in the process, and how this relates to Hooke's Law, which defines the restorative force of a spring. Using a graph, see how force increases proportionally with displacement, and how one can use the area under the graph to calculate the work done to compress the spring. Finally, relate this work to the potential energy stored in the spring. Created by Sal Khan.
