# Visualizing vectors in 2 dimensions

AP.PHYS:

FLD‑2.A (EU)

, FLD‑2.A.1 (EK)

Visualizing, adding and breaking down vectors in 2 dimensions. Created by Sal Khan.

## Want to join the conversation?

- when adding vectors you say vector a plus vector b = vector c... when showing the horizontal and vertical we come up with a 3,4,5 right triangle. a+b doesnt equal c. a^2+b^2=c^2. Little confused :)(165 votes)
- The equation vector a + vector b= vector c doesn't talk about the numerical values. The equation is trying to say that going in direction/magnitude A and then going in direction/magnitude B is the same as going in direction/magnitude C.(213 votes)

- What are the strange ‖ symbols that keep popping up? They look like 2 small vertical lines together.(23 votes)
- That means the magnitude of a vector. denoted ║a║, were a is a vector.(38 votes)

- Why is it so hard to imagine the fourth dimension?(16 votes)
- Another thing is, we can only see our dimensions, and those are the 3. We can not imagine 2 dimensions either, because say it was height and width, you could not see it in out dimension, it would not have depth, making it invisible to our eyes. It is the pretty much the same think with the other ones.(2 votes)

- I got confused for a bit thinking he put a load of elevens everywhere but then I realized they where just lines to make it a bit neater lol. Or where they for something else? E.g where it said II a II=5. I haven't done any trigonometry yet either.(9 votes)
- ||a|| is just magnitude.

That means you can forget the direction.

ex. - acceleration due to gravity is -10m/s^2 because it is in downward direction.

but the MAGNITUDE is 10m/s^2.

and thats the same thing as ||a||.

It is also sometimes written as |a|(15 votes)

- why are the variables put between || || ? like ||a|| for example.(6 votes)
- || a || represents the scalar component of a vector. Remember that a vector has magnitude AND direction, while scalar quantities ONLY consist of magnitude.

EX: acceleration (a)= 30m/s/s to the RIGHT is a vector; || a ||= 30m/s/s is scalar(2 votes)

- Is it possible to have a vector in 4 dimensions? If so, how would it look?(4 votes)
- If one accepts that time is the 4th coordinate (the 4th dimension), then it is necessarily a piece of the context of vector. As far as what it would "look like", that's a little trickier (as if that first statement wasn't ambiguous enough..). Try to stick with me on this though. Time is a way of comparing the change of other objects to some constant(s). On Earth, we use our motion around the sun as our constant. Further, we use metrics like "meters", "grams", etc, as constants. When you are observing a given space (picture a model of planetary orbit around the sun or a shoe-box diorama for that matter), it will "look" however it "looks" when your potential coordinates are all satisfied in relation to the constants. For example, in the year 2025 (2,025 revolutions of Earth around the sun after the life/death of "J.C."), Earth will be at spatial coordinates x,y,z. Once you are at this particular coordinate though (x,y,z,2025), you can only speak of what the vector
*was*that got it there, and what it*will be*(assuming "ceteris paribus")(5 votes)

- I still don't understand how A + B = C!!(2 votes)
- Try taking the vectors apart and looking at their components. If it's like this, you often can visualize the addition better. When we put vectors from tip to tail in order to add them, it's like we're separately adding the vertical components and horizontal components, and then condensing that into a new vector.

Say we have a vector pointing straight up, and another vector pointing up and rightwards (excluding the specific information and magnitude to make the problem clear). To add them graphically, you would take the straight up vector and put the tail of the up-and-right vector onto the tip of the up vector. Let's now do this with their components. The vertical component of the up vector is added to the vertical component of the up-and-right vector, creating a new vertical component that's even greater. The horizontal component of the up vector is 0, so the new one would be the same length as the horizontal component of the up-and-right vector. We then create the resultant vector and it is greater in magnitude than either of the two were, and its angle is in between that of the up-and-right vector and the up vector.

So, when we add vectors, we're really adding the components together and getting the resultant. Does this help your understanding?(6 votes)

- Is the 4 dimension time?(3 votes)
- Yes, sort of. There are three spacial demensions and one time demension. None is exactly the first, second, etc. It's like, if you have 4 cups of water, which is fourth? Answer: none. they are all first.(5 votes)

- At1:17, why didn't Sal just draw a line connect Vector A and Vector B, and why he needed to move Vector B to the head of Vector A?(2 votes)
- As he said in the video he was showing that a vector is a defined by a magnitude/length and a direction but the position of the vector in the coordinate system is irrelevant to the definition of the vector.

He probably started out with the vectors starting at the same point because you often have diagrams like that where you are showing the forces on an object, a good example is a free body diagram.

He moved the tail of one vector to the head of the other because that is the geometric way of looking at what it means to add vectors.(5 votes)

- 2:04what can you do to vectors? So can you use translation but not rotation/reflection/enlargement?(2 votes)
- I am not a maths teacher, but I do recall that you can do all of the things you mention using matrices.(5 votes)

## Video transcript

- [Voiceover] All the problems we've been dealing with so far have essentially been
happening in one dimension. You could go forward or back. So you could go forward or back. Or right or left. Or you could go up or down. What I wanna start to
talk about in this video is what happens when we
extend that to two dimensions or we can even just extend
what we're doing in this video to three or four, really an
arbitrary number of dimensions. Although if you're dealing
with classical mechanics you normally don't have to go
more than three dimensions. And if you're gonna deal
with more than one dimension, especially in two dimensions, we're also gonna be dealing
with two-dimensional vectors. And I just wanna make
sure, through this video, that we understand at least the basics of two-dimensional vectors. Remember, a vector is something that has both magnitude and direction. So the first thing I wanna do is just give you a visual understanding of how vectors in two
dimensions would add. So let's say I have a vector right here. That is vector A. So, once again, its magnitude is specified by the length of this arrow. And its direction is specified by the direction of the arrow. So it's going in that direction. Now let's say I have another vector. Let's call it vector B. Let's call it vector B. It looks like this. Now what I wanna do in this video is think about what happens when I add vector A to vector B. So there's a couple things to think about when you visually depict vectors. The important thing is,
for example, for vector A, that you get the length right and you get the direction right. Where you actually draw it doesn't matter. So this could be vector A. This could also be vector A. Notice, it has the same length and it has the same direction. This is also vector A. I could draw vector A up
here. It does not matter. I could draw vector A up there. I could draw vector B. I could draw vector B over here. It's still vector B. It still has the same
magnitude and direction. Notice, we're not saying that its tail has to
start at the same place that vector A's tail starts at. I could draw vector B over here. So I can always have the same vector but I can shift it around. So I can move it up there. As long as it has the same
magnitude, the same length, and the same direction. And the whole reason I'm doing that is because the way to

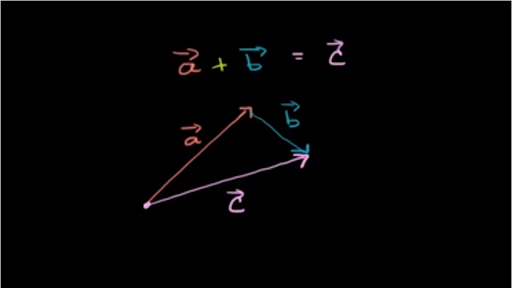

visually add vectors... If I wanted to add vector A plus vector B... And I'll show you how to
do it more analytically in a future video. I can literally draw vector A. I draw vector A. So that's vector A, right over there. And then I can draw vector B, but I put the tail of vector
B to the head of vector A. So I shift vector B over so its tail is right at
the head of vector A. And then vector B would
look something like this. It would look something like this. And then if you go from the tail of A all the way to the head of B, all the way to the head of B, and you call that vector C, that is the sum of A and B. And it should make sense,
if you think about it. Let's say these were displacement vectors. So A shows that you're being displaced this much in this direction. B shows that you're being displaced this much in this direction. So the length of B in that direction. And if I were to say you
have a displacement of A, and then you have a displacement of B, what is your total displacement? So you would have had to be, I guess, shifted this
far in this direction, and then you would be shifted
this far in this direction. So the net amount that you've been shifted is this far in that direction. So that's why this would
be the sum of those. Now we can use that same idea to break down any vector in two dimensions into, we could say, into its components. And I'll give you a better sense of what that means in a second. So if I have vector A. Let me pick a new letter. Let's call this vector "vector X." Let's call this "vector X." I can say that vector X
is going to be the sum of this vector right here in green and this vector right here in red. Notice, X starts at the
tail of the green vector and goes all the way to the
head of the magenta vector. And the magenta vector starts at the head of the green vector and then finishes, I guess, well where it finishes is
where vector X finishes. And the reason why I do this... And, you know, hopefully from this comparable explanation right here, says, okay, look, the green
vector plus the magenta vector gives us this X vector. That should make sense. I put the head of the green vector to the tail of this magenta
vector right over here. But the whole reason why I did this is, if I can express X as a
sum of these two vectors, it then breaks down X into
its vertical component and its horizontal component. So I could call this the horizontal component, or I should say the vertical component. X vertical. And then I could call this over here the X horizontal. Or another way I could draw it, I could shift this X vertical over. Remember, it doesn't
matter where I draw it, as long as it has the same
magnitude and direction. And I could draw it like this. X vertical. And so what you see is is that you could express this vector X... Let me do it in the same colors. You can express this vector X as the sum of its horizontal
and its vertical components. As the sum of its horizontal
and its vertical components. Now we're gonna see over and over again that this is super powerful because what it can do is it can turn a two-dimensional problem into two separate
one-dimensional problems, one acting in a horizontal direction, one acting in a vertical direction. Now let's do it a little
bit more mathematical. I've just been telling you
about length and all of that. But let's actually break down... Let me just show you what this means, to break down the components of a vector. So let's say that I have a
vector that looks like this. Let me do my best to... Let's say I have a vector
that looks like this. It's length is five. So let me call this vector A. So vector A's length is equal to five. And let's say that its direction... We're gonna give its
direction by the angle between the direction its pointing in and the positive X axis. So maybe I'll draw an axis over here. So let's say that this right over here is the positive Y axis going
in the vertical direction. This right over here
is the positive X axis going in the horizontal direction. And to specify this vector's direction I will give this angle right over here. And I'm gonna give a very peculiar angle, but I picked this for a specific reason, just so things work out neatly in the end. And I'm gonna give it in degrees. It's 36.8699 degrees. So I'm picking that particular number for a particular reason. Now what I wanna do is I wanna figure out this vector's horizontal
and vertical component. So I wanna break it down into something that's
going straight up or down and something that's going
straight right or left. So how do I do this? Well, one, I could just
draw them, visually, see what they look like. So its vertical component
would look like this. It would start... Its vertical component
would look like this. And its horizontal component
would look like this. Its horizontal component
would look like this. The horizontal component,
the way I drew it, it would start where vector A starts and go as far in the X
direction as vector A's tip, but only in the X direction, and then you need to, to get
back to the head of vector A, you need to have its vertical component. And we can sometimes call this, we could call the vertical
component over here A sub Y, just so that it's moving
in the Y direction. And we can call this
horizontal component A sub X. Now what I wanna do is I wanna figure out the magnitude of A sub Y and A sub X. So how do we do that? Well, the way we drew this, I've essentially set up
a right triangle for us. This is a right triangle. We know the length of this triangle, or the length of this side, or
the length of the hypotenuse. That's going to be the
magnitude of vector A. And so the magnitude of
vector A is equal to five. We already knew that up here. So how do we figure out the sides? Well, we could use a little
bit of basic trigonometry. If we know the angle, and
we know the hypotenuse, how do we figure out the
opposite side to the angle? So this right here, this right here is the
opposite side to the angle. And if we forgot some of
our basic trigonometry we can relearn it right now. Soh-cah-toa. Sine is opposite over hypotenuse. Cosine is adjacent over hypotenuse. Tangent is opposite over adjacent. So we have the angle,
we want the opposite, and we have the hypotenuse. So we could say that the sine of our angle, the sine of 36.899 degrees, is going to be equal to the
opposite over the hypotenuse. The opposite side of the angle is the magnitude of our Y component. ...is going to be equal to the
magnitude of our Y component, the magnitude of our Y component, over the magnitude of the hypotenuse, over this length over here, which we know is going
to be equal to five. Or if you multiply both sides by five, you get five sine of 36.899 degrees, is equal to the magnitude
of the vertical component of our vector A. Now before I take out the calculator and figure out what this is, let me do the same thing for
the horizontal component. Over here we know this side
is adjacent to the angle. And we know the hypotenuse. And so cosine deals with
adjacent and hypotenuse. So we know that the
cosine of 36.899 degrees is equal to... Cosine is adjacent over hypotenuse. So it's equal to the
magnitude of our X component over the hypotenuse. The hypotenuse here has... Or the magnitude of the
hypotenuse, I should say, which has a length of five. Once again, we multiply
both sides by five, and we get five times the
cosine of 36.899 degrees is equal to the magnitude
of our X component. So let's figure out what these are. Let me get the calculator out. Let me get my trusty TI-85 out. I wanna make sure it's in degree mode. So let me check. Yep, we're in degree
mode right over there. Don't wanna... Make sure
we're not in radian mode. Now let's exit that. And we have the vertical
component is equal to five times the sine of 36.899 degrees, which is, if we round
it, right at about three. So this is equal to... So the magnitude of our vertical component is equal to three. And then let's do the same thing for our horizontal component. So now we have five times the cosine of 36.899 degrees, is, if once again we round it to, I guess, our hundredths place,
we get it to being four. So we get it to being four. So we see here is a
situation where we have... This is a classic three-four-five
Pythagorean triangle. The magnitude of our
horizontal component is four. The magnitude of our vertical
component, right over here, is equal to three. And once again, you might say, Sal, why are we going
through all of this trouble? And we'll see in the next video that if we say something has a velocity, in this direction, of
five meters per second, we could break that down into
two component velocities. We could say that that's
going in the upwards direction at three meters per second, and it's also going to the right
in the horizontal direction at four meters per second. And it allows us to break up the problem into two simpler problems, into two one-dimensional problems, instead of a bigger two-dimensional one.
